What Hardware will I need for my vehicle?

We have placed below a list of vehicles along with what FaultMate components you will require.

Along with the below mentioned parts you will of course also need a PC/Laptop running Windows and Internet Explorer Version 6 or above.

Along with the following hardware you will also require either single or multiple vehicle software. Information on this can be found here.

You may also require a USB adaptor to plug the unit into your computer - more info on this here.

Range Rover Sport

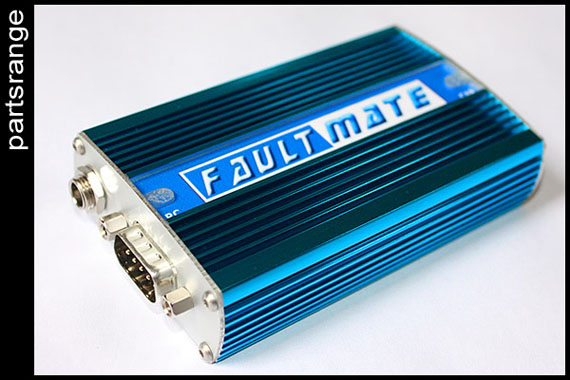

  • FaultMate MSV-2 NANO Vehicle Server with VCI 1
  • Serial Connection Lead
  • VCI 2 Combined OBDII Lead for CAN BUS Vehicles

L322 Range Rover 2005 onwards

  • FaultMate MSV-2 NANO Vehicle Server with VCI 1
  • Serial Connection Lead
  • VCI 2 Combined OBDII Lead for CAN BUS Vehicles

L322 Range Rover 2002 to 2005

  • FaultMate MSV-2 NANO Vehicle Server with VCI 1
  • Serial Connection Lead
  • Black OBDII Lead

Discovery Series 3

  • FaultMate MSV-2 NANO Vehicle Server with VCI 1
  • Serial Connection Lead
  • VCI 2 Combined OBDII Lead for CAN BUS Vehicles

 Freelander 2

  • FaultMate MSV-2 NANO Vehicle Server with VCI 1
  • Serial Connection Lead
  • VCI 2 Combined OBDII Lead for CAN BUS Vehicles

Defender 2007 onwards

  • FaultMate MSV-2 NANO Vehicle Server with VCI 1
  • Serial Connection Lead
  • VCI 2 Combined OBDII Lead for CAN BUS Vehicles

Defender TD5 up to 2007

  • FaultMate MSV-2 NANO Vehicle Server with VCI 1
  • Serial Connection Lead
  • Black OBDII Lead

P38 Range Rover

  • FaultMate MSV-2 NANO Vehicle Server with VCI 1
  • Serial Connection Lead
  • Black OBDII Lead

Discovery Series 2

  • FaultMate MSV-2 NANO Vehicle Server with VCI 1
  • Serial Connection Lead
  • Black OBDII Lead

Freelander 1

  • FaultMate MSV-2 NANO Vehicle Server with VCI 1
  • Serial Connection Lead
  • Black OBDII Lead

Range Rover Classic 3.9 / 4.2

  • FaultMate MSV-2 NANO Vehicle Server with VCI 1
  • Serial Connection Lead
  • Cigar Lighter Power Lead
  • For the Engine and Air Suspension ECU's - Red 14CUX Lead
  • For the Soft Dash SRS Air Bag ECU - Green Lead
  • For the ABS ECU - Blue Lead

Discovery Series 1 3.5 / 3.9 EFi

  • FaultMate MSV-2 NANO Vehicle Server with VCI 1
  • Serial Connection Lead
  • Cigar Lighter Power Lead
  • For the Engine ECU - Red 14CUX Lead

Morgan +8 4.0 Sagem Model

  • FaultMate MSV-2 NANO Vehicle Server with VCI 1
  • Serial Connection Lead
  • Black OBDII Lead

Morgan +8 3.9 / 4.6

  • FaultMate MSV-2 NANO Vehicle Server with VCI 1
  • Serial Connection Lead
  • Cigar Lighter Power Lead
  • For the Engine ECU - Red 14CUX Lead

TVR's, Marcos and Kit cars etc with Hotwire 14CUX Injection Systems

  • FaultMate MSV-2 NANO Vehicle Server with VCI 1
  • Serial Connection Lead
  • Cigar Lighter Power Lead
  • For the Engine ECU - Red 14CUX Lead

Will you require a USB adaptor?

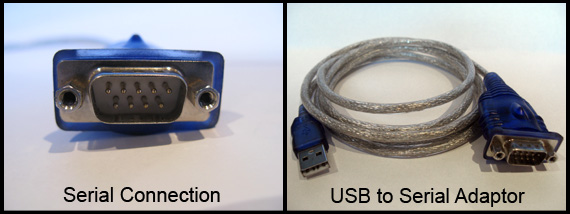

The FaultMate system connects to your computer via a serial connection, as seen on the left image below. If your laptop does not have a serial port then we can supply you with a USB to Serial adaptor lead as shown in the image on the right below.
